Mold Monitor
Product parameters
| Model | ZC-501 | ZC-501T | ZC-701T |

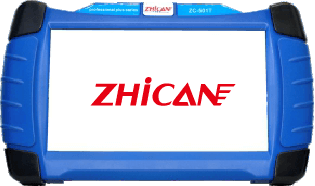

| Picture |  |
 |
 |
| Hard disk | 60G(Max. Save 5000pcs, NG Picture) | 120G(Max. Save 10000pcx, NG Picture) | 120G(Max. Save 1000pcs, NG Picture) |
| Resolution | 1366*768 | 1920*1280 | 1920*1280 |
| Touch screen | 11.6吋 | 11.6吋 | 13.3吋 |
| MS | 0.18s | 0.15s | 0.15s |
| Size of Monitor | 330x240x40mm | 330x240x40mm | 343x222x35mm |
| CPU | Intel 3865U | Intel i3 7100 | Intel i3 7100 |
| Power | DC24V/50W | DC24V/60W | DC24V/60W |
| Power supply of Camera | 48V/POE | 48V/POE | 48V/POE |
| Pixel | 130-500 mp | 130-500 mp | 130-500 mp |
| Lens Zoom | 5-50mm | 5-50mm | 5-50mm |
| Working Temp. | 0-55°C | 0-55°C | 0-55°C |
| Loadable | Support 2 cameras, production report function | Support 4 cameras, production report function | Max. supports 8 cameras, supports color cameras, and supports multi-camera mode for individual photography |
※Based on the technical upgrade, the technical parameters of the product are subject to change without notice.

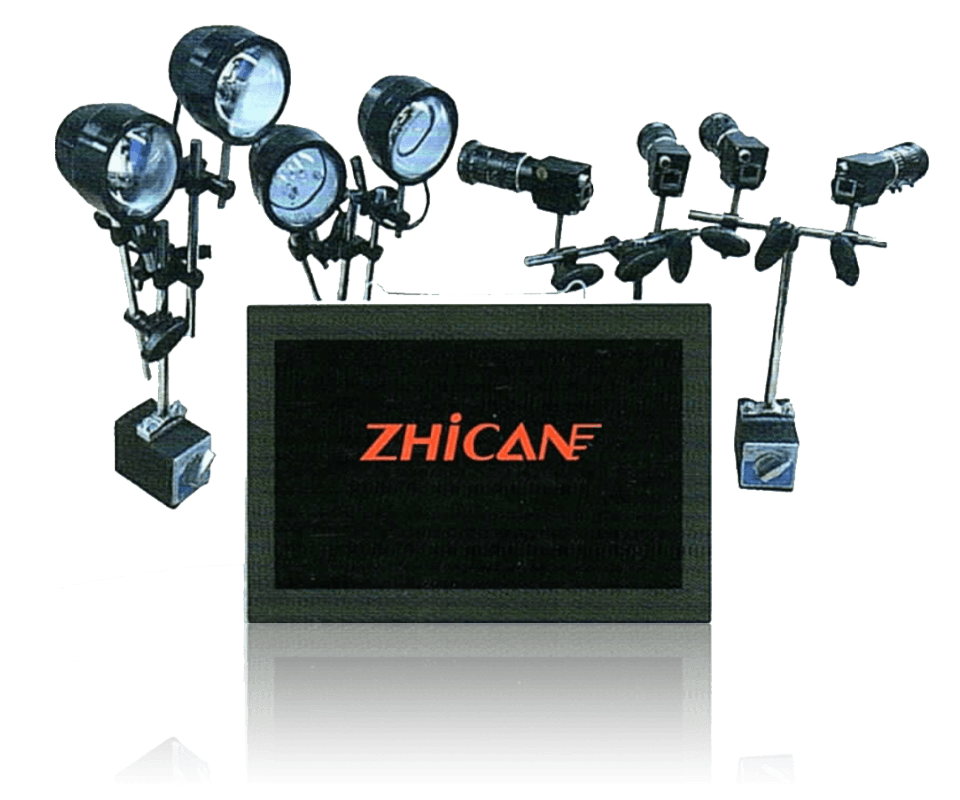

Accessories reference chart
-
Gigabit network industrial camera
-
Infrared
-
IO board of 6 in and out
-
High-flex signal wire
-
Opend, Close Power

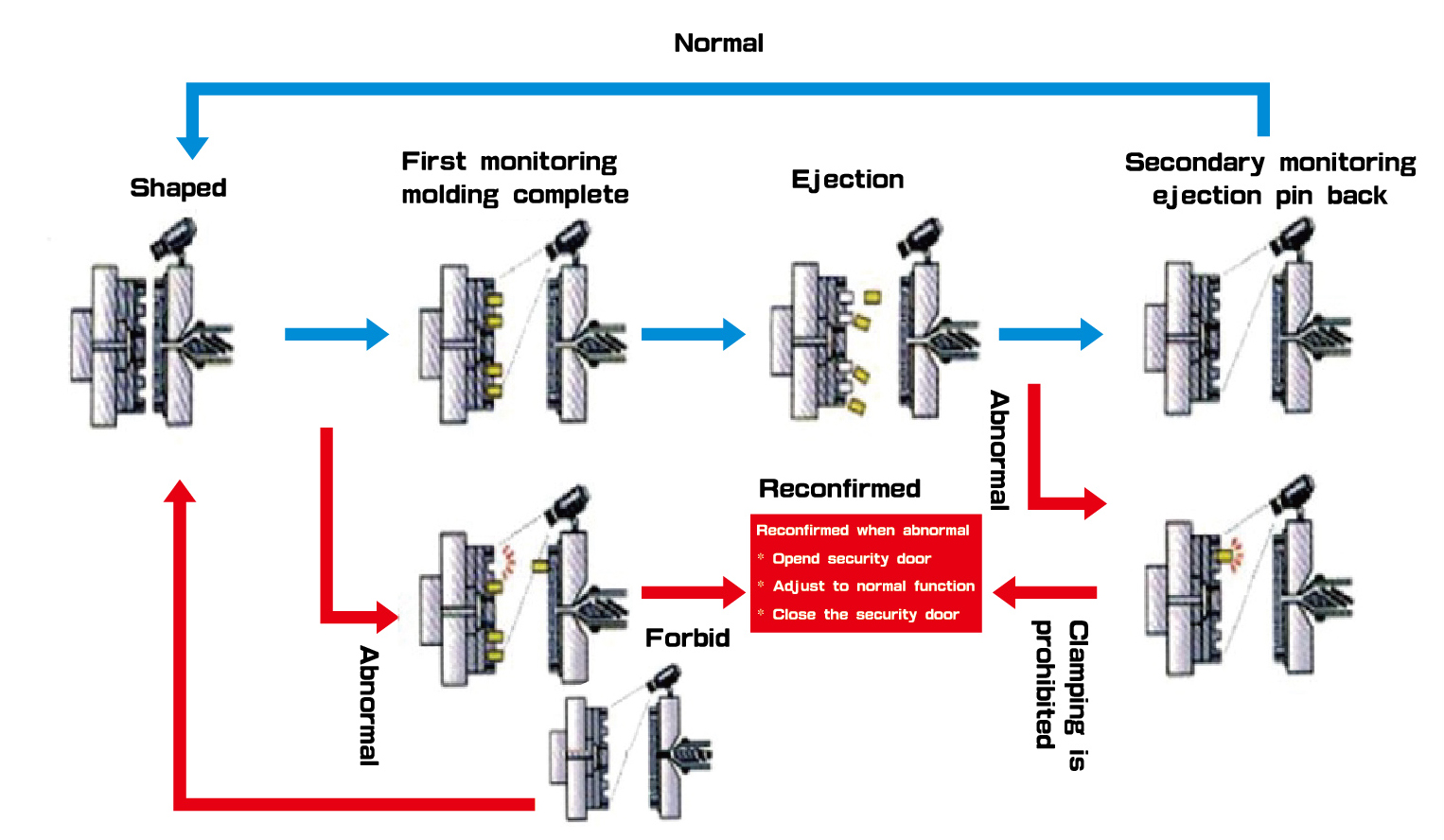

Working principle and flow chart

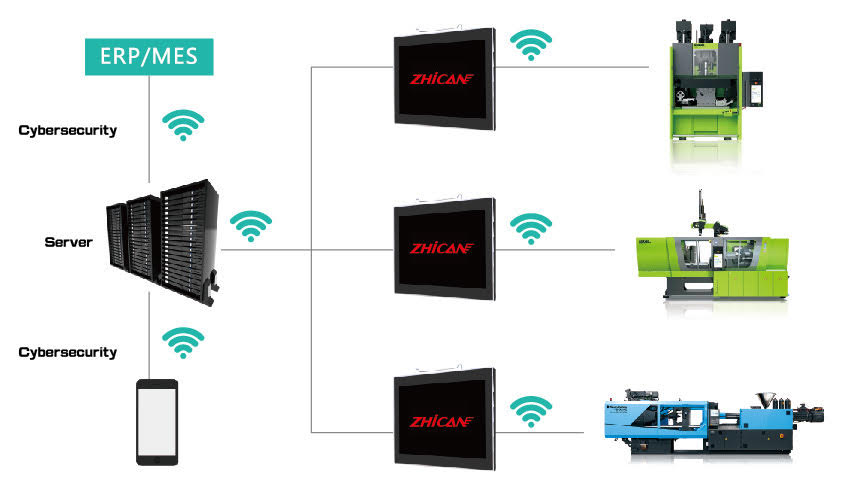

Big Data Services
- Version 2.0 adds the billboard big data function to record the OK/NG status of each running time.

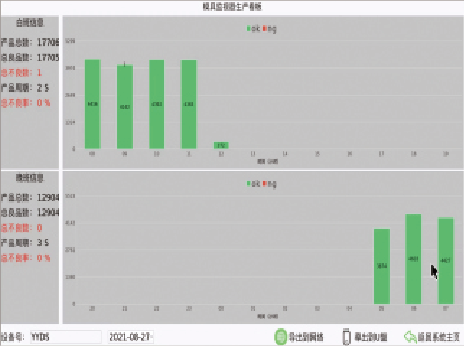

- Generate histograms every hour, output to EXCEL through USB, and reduce the statistical work of personnel.
- It may connect with network to the MES of customer & point to the specified folder automatically.

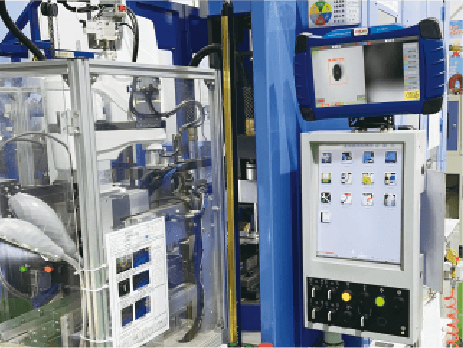

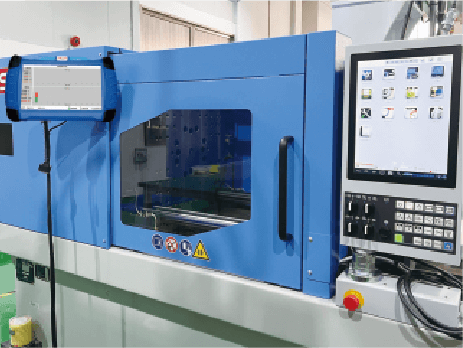

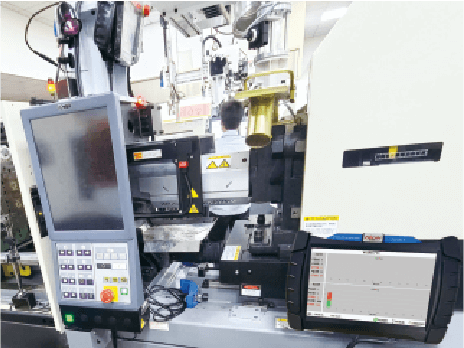

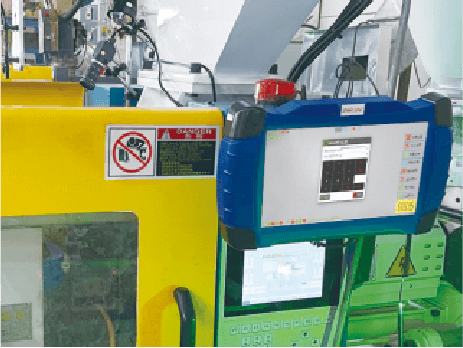

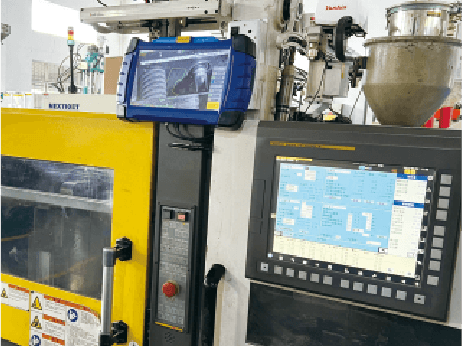

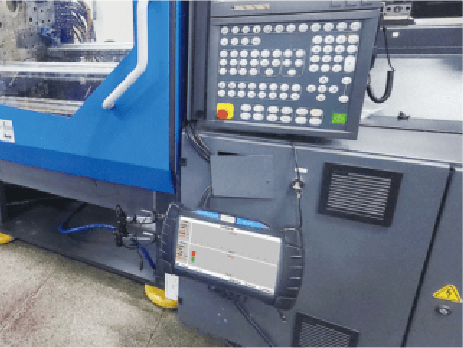

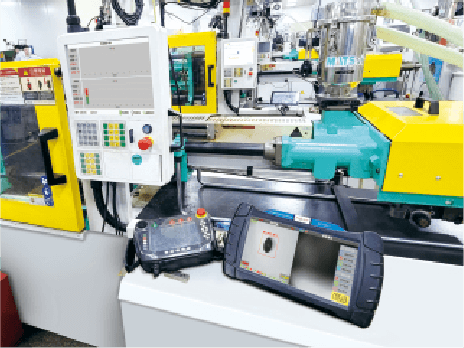

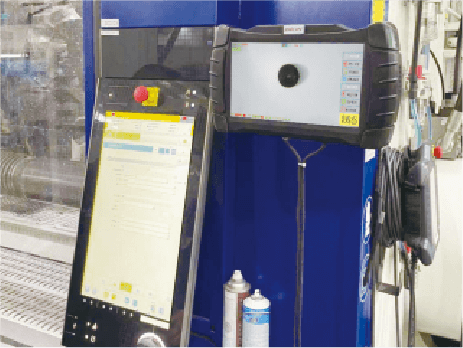

Application cade
