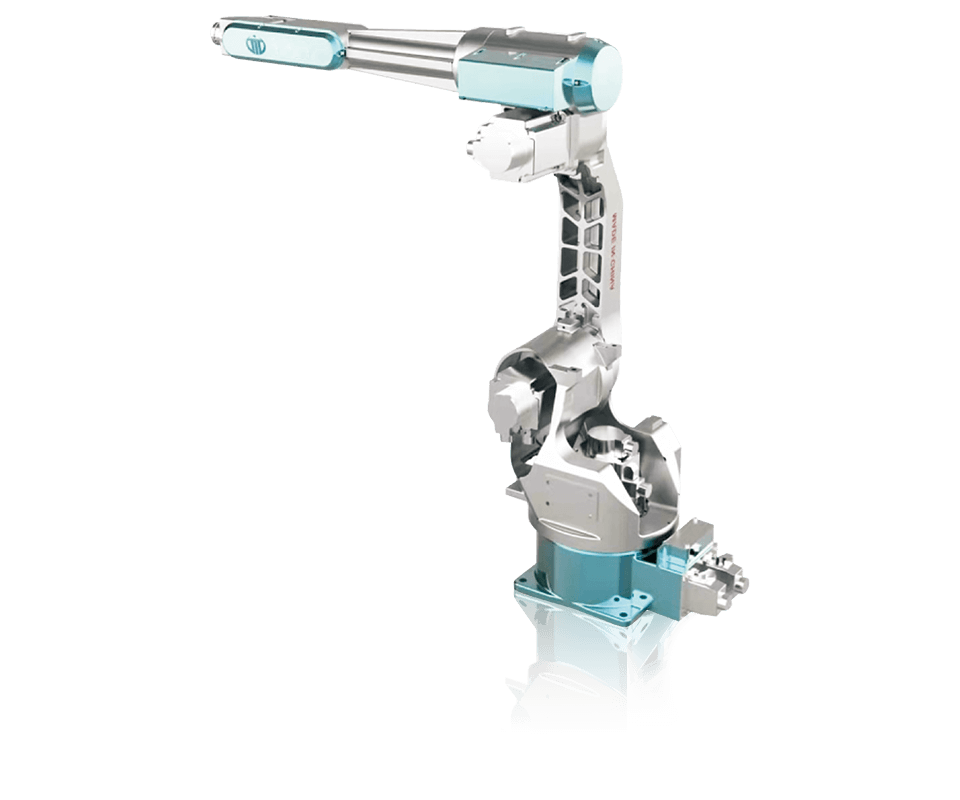

LTJ50-B Industrial robot
Main Specification
| Model | LTJ50-B | |
| Rated payload | 50KG | |
| Reach radius | 2800mm | |
| Constructure | Connect | |
| Axes | 6 | |
| Repeatability | ±0.1mm | |
| Max. Working range | Axis 1 rotation | ±180° |
| Axis 2 arm | +140°~-77° | |
| Axis 3 arm | +75°~-184° | |
| Axis 4 wrist | ±360° | |
| Axis 5 bemd | ±115° | |
| Axis 6 turn | ±450° | |
| Max .Rotation rate | Axis 1 rotation | 148°/sec |
| Axis 2 arm | 148°/sec | |
| Axis 3 arm | 150°/sec | |
| Axis 4 wrist | 222°/sec | |
| Axis 5 bemd | 222°/sec | |
| Axis 6 turn | 360˚/sec | |
| Weight | ≈750KG | |
| Installation | Ground Mounting, Bracket Mounting, Upside Down Mounting | |
| Ambient Temperature | -20°C~8 0°C | |
| Suitable model | 1200T-2800T | |
※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.

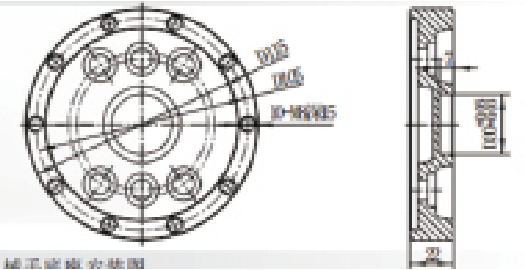

Flange drawing
Base installation drawing
