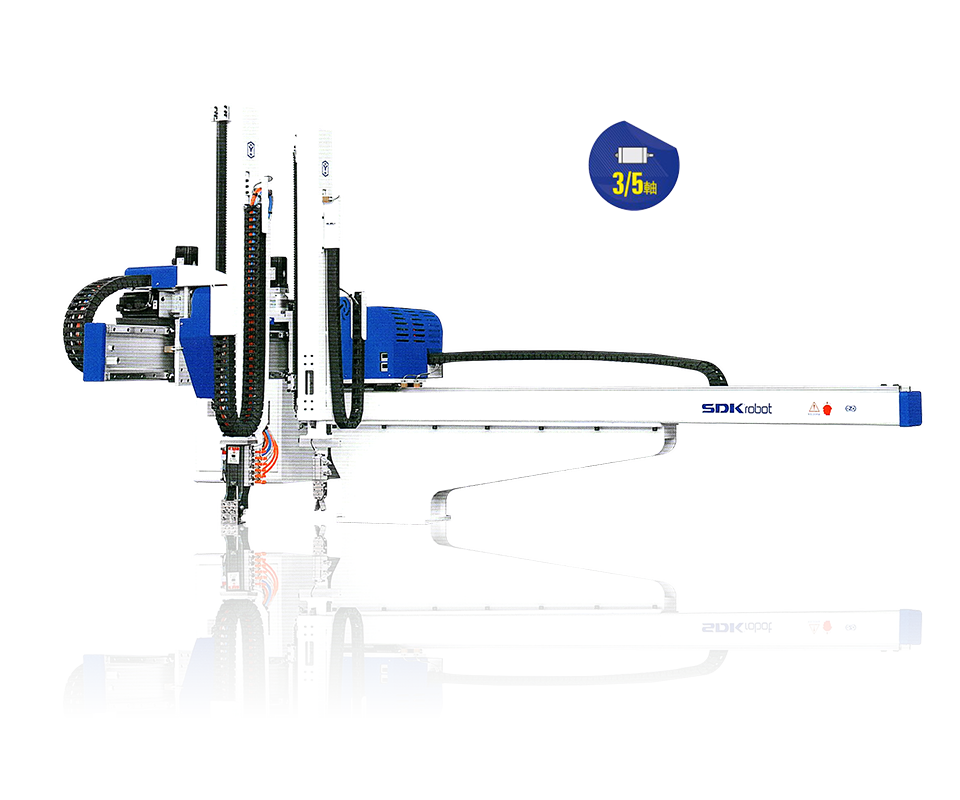

E series-full servo traversing robot
Main explanation
E-series full-servo cross-running robot series is mainly applied to 100-700T horizontal injection molding machine out of the finished product, are double-cut arm, can increase the servo to clip the material head X､Y､Z three-axis five Axis with AC servo motor drive, with Korea SA low noise slide, quiet and smooth, are equipped with standard equipment.

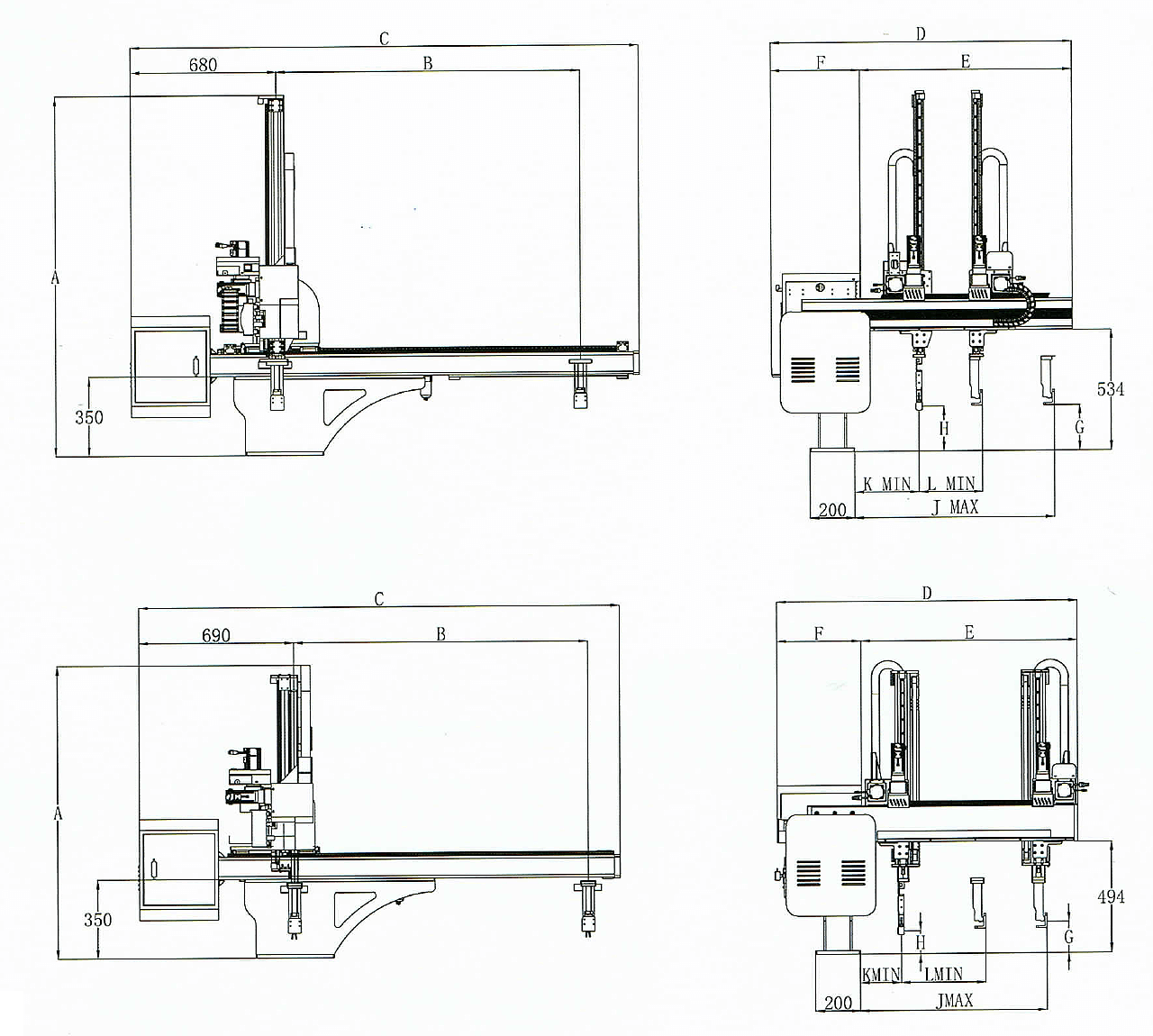

Size and chart850~1000
Main Specification850~1000
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) | Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | ||||||||||
| ESI-850+S3 | 100~280 | 850 | Main arm: 350 Sub-arm: 350 |
1350 | 90˚ | 4 | 1.2 | 5 | Full AC servo motor drive Full AC Servro Motor Drive |
5~7 | 8 | Single-phase AC220V±10V 50/60HZ |
2.8 | 200 |
| EDI-850+S5 | 210 | |||||||||||||
| ESI-1000+S3 | 200~350 | 1000 | Main arm: 530 Sub-arm: 530 |
1700 | 1.3 | 5.2 | 220 | |||||||
| EDI-1000+S5 | 230 | |||||||||||||
| ESII-850+S3 | 100~280 | 850 | Main arm: 350 Sub-arm: 350 |
1350 | 1.1 | 6 | 200 | |||||||
| EDII-850+S5 | 210 | |||||||||||||
| ESII-1000+S3 | 200~350 | 1000 | Main arm: 530 Sub-arm: 530 |
1700 | 1.2 | 6.2 | 220 | |||||||
| EDII-1000+S5 | 230 | |||||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L |
| ESI-850+S3 | 1700 | 1350 | 2260 | 1340 | 940 | 400 | 230 | 230 | 720 | 180 | 120 |
| EDI-850+S5 | |||||||||||
| ESI-1000+S3 | 1820 | 1700 | 2660 | 1520 | 1120 | 200 | 200 | 880 | |||
| EDI-1000+S5 | |||||||||||
| ESII-850+S3 | 1150 | 1350 | 2140 | 1340 | 940 | 400 | 150 | 150 | 720 | 180 | 120 |
| EDII-850+S5 | |||||||||||
| ESII-1000+S3 | 1200 | 1700 | 2500 | 1520 | 1120 | 120 | 120 | 880 | |||
| EDII-1000+S5 | |||||||||||
For process improvement, model update without notice!

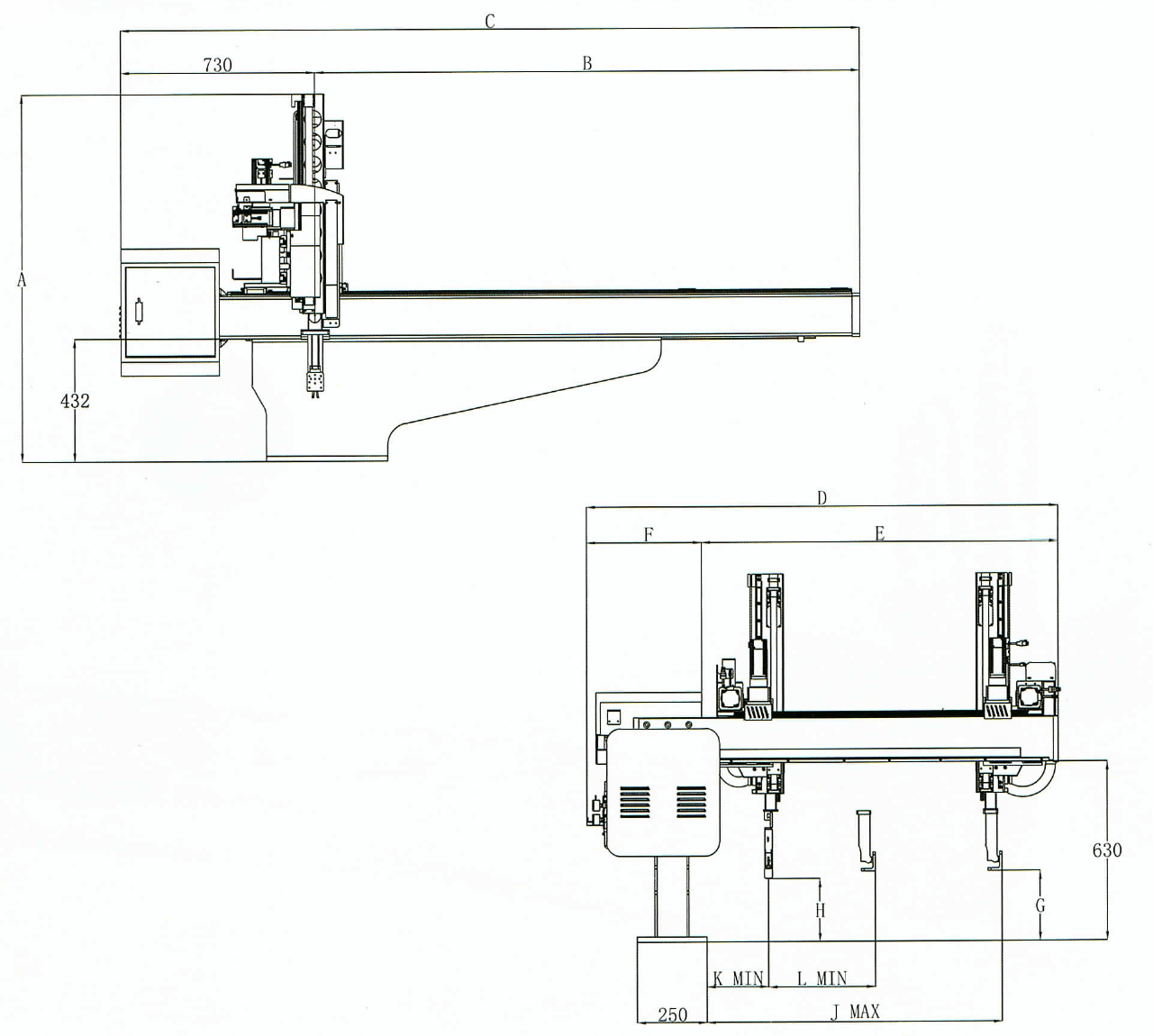

Size and chart1200~1400
Main Specification1200~1400
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) |
Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | ||||||||||
| ESII-1200+S3 | 250~450 | 1200 | Main arm: 700 Sub-arm: 120 |
1750 | 90˚ | 10 | 1.5 | 6 | Full AC servo motor drive Full AC Servro Motor Drive |
5~7 | 8 | Single-phase AC220V±10V 50/60HZ |
2.8 | 310 |
| EDII-1200+S5 | 340 | |||||||||||||
| ESII-1400+S3 | 350~700 | 1400 | Main arm: 820 Sub-arm: 120 |
2000 | 1.8 | 6.5 | 350 | |||||||
| EDII-1400+S5 | 380 | |||||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L |
| ESII-1200+S3 | 1480 | 1800 | 2620 | 1670 | 1270 | 400 | 200 | 200 | 1000 | 180 | 150 |
| EDII-1200+S5 | |||||||||||
| ESII-1400+S3 | 1600 | 2000 | 2820 | 1850 | 1450 | 1800 | |||||
| EDII-1400+S5 | |||||||||||
For process improvement, model update without notice!

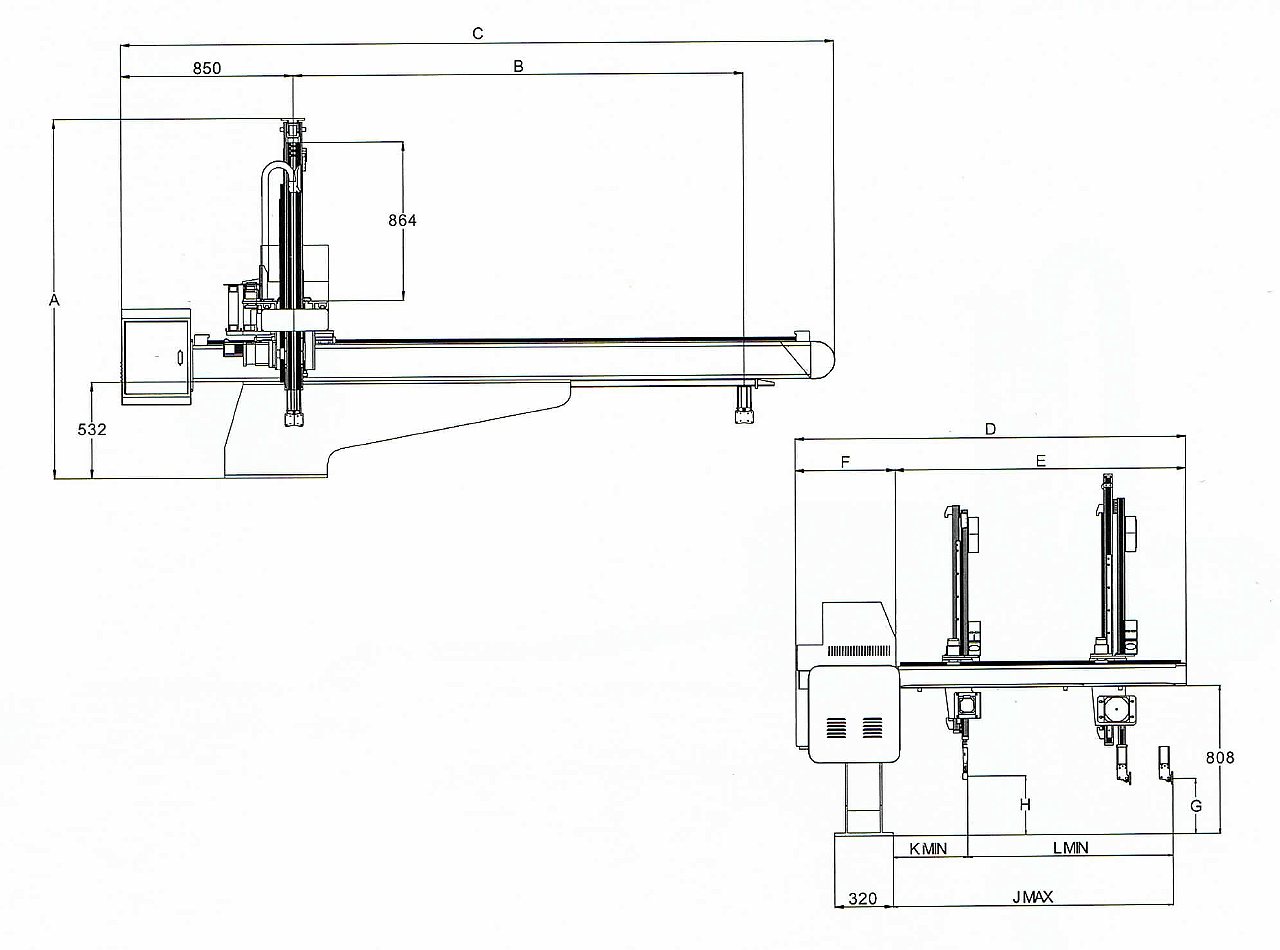

Size and chart1500~2200
Main Specification1500~2200
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) |
Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | ||||||||||
| ESII-1500+S3 | 650~1000 | 1500 | Main arm: 800 Sub-arm: 300 |
2600 | 90˚ | 12 | 3 | 15 | Full AC servo motor drive Full AC Servro Motor Drive |
5~7 | 8 | Single-phase AC220V±10V 50/60HZ |
2.8 | 820 |
| EDII-1500+S5 | ||||||||||||||
| ESII-1700+S3 | 800~1250 | 1700 | 890 | |||||||||||
| EDII-1700+S5 | ||||||||||||||
| ESII-1900+S3 | 900~1400 | 1900 | 2900 | 15 | 3.5 | 980 | ||||||||
| EDII-1900+S5 | ||||||||||||||
| ESII-2200+S3 | 1200~1600 | 2200 | 3400 | 1080 | ||||||||||
| EDII-2200+S5 | ||||||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L |
| ESII-1500+S3 | 1980 | 2600 | 3950 | 2150 | 1600 | 550 | 250 | 250 | 1500 | 140 | 200 |
| EDII-1500+S5 | |||||||||||
| ESII-1700+S3 | 2100 | ||||||||||
| EDII-1700+S5 | |||||||||||
| ESII-1900+S3 | 2220 | 2900 | 4250 | 2550 | 2000 | 1900 | 1900 | ||||
| EDII-1900+S5 | |||||||||||
| ESII-2200+S3 | 2400 | 3400 | 4750 | ||||||||
| EDII-2200+S5 | |||||||||||
For process improvement, model update without notice!
