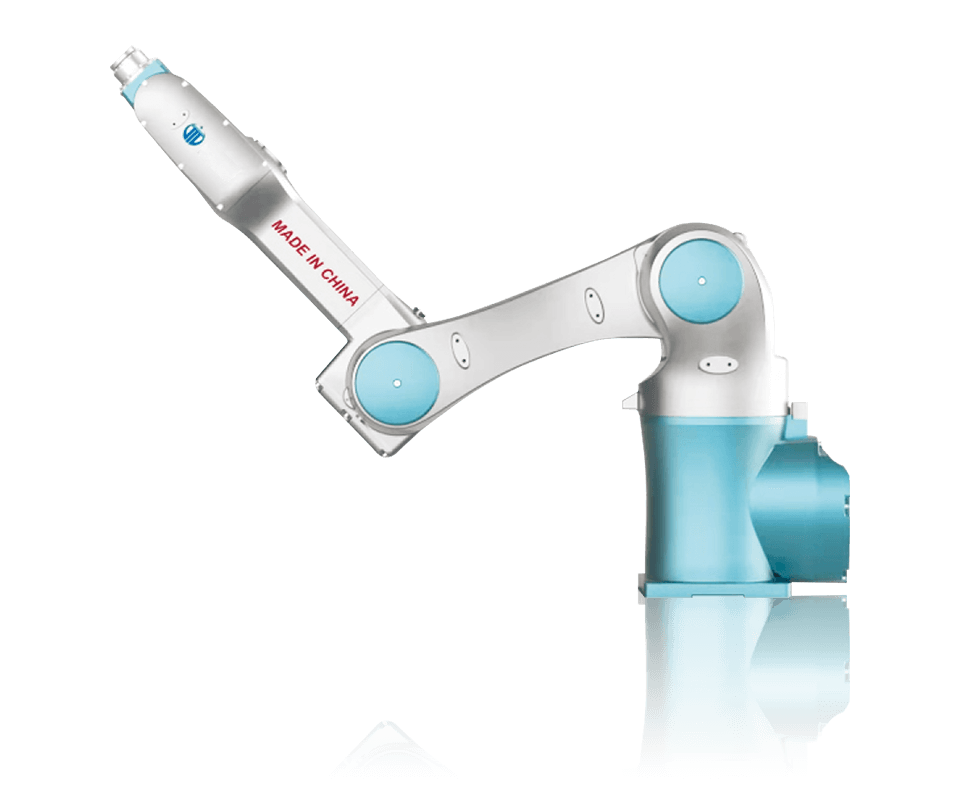

LTJ6-B Industrial robot
Main Specification
| Model | LTJ6-B | |
| Rated payload | 6KG | |
| Reach radius | 900/1000mm | |
| Constructure | Connect | |
| Axes | 6 | |
| Repeatability | ±0.03mm | |
| Max. Working range | Axis 1 rotation | ±170° |
| Axis 2 arm | ±100°~-130° | |
| Axis 3 arm | ±120°~-66° | |
| Axis 4 wrist | ±185° | |
| Axis 5 bemd | ±135° | |
| Axis 6 turn | ±360° | |
| Max .Rotation rate | Axis 1 rotation | 247°/sec |
| Axis 2 arm | 248°/sec | |
| Axis 3 arm | 297°/sec | |
| Axis 4 wrist | 278°/sec | |
| Axis 5 bemd | 370°/sec | |
| Axis 6 turn | 600˚/sec | |
| Weight | ≈53KG | |
| Installation | Ground Mounting, Bracket Mounting, Upside Down Mounting | |
| Ambient Temperature | -20°C~8 0°C | |
| Suitable model | 50T-180T | |
※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.

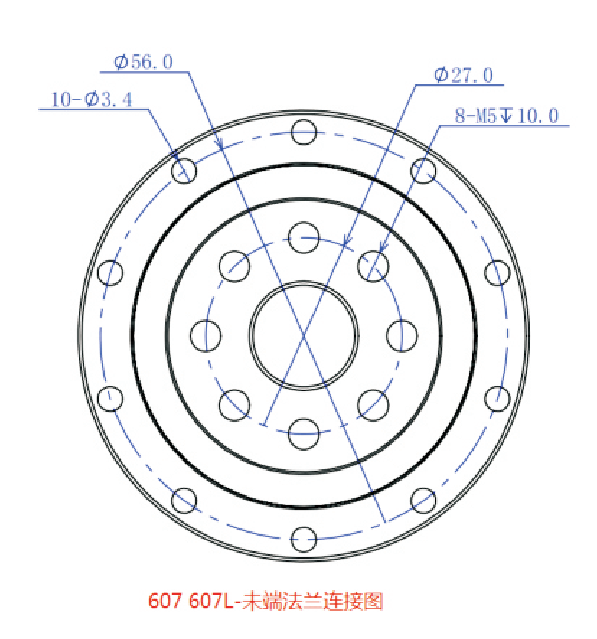

Flange drawing

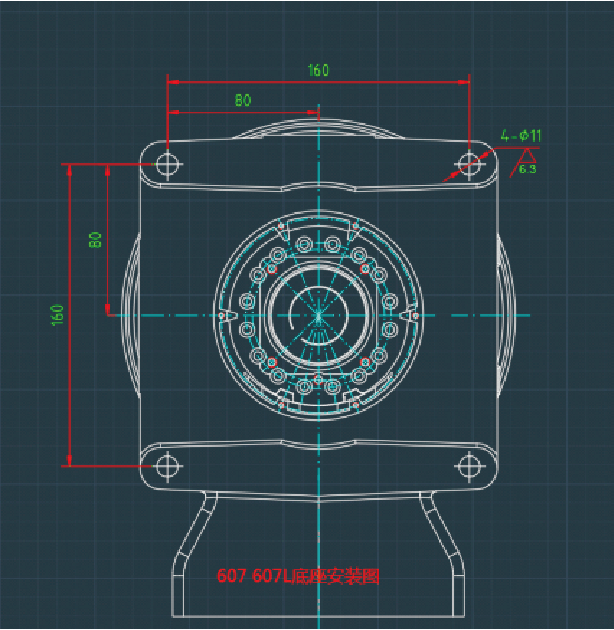

Base installation drawing
