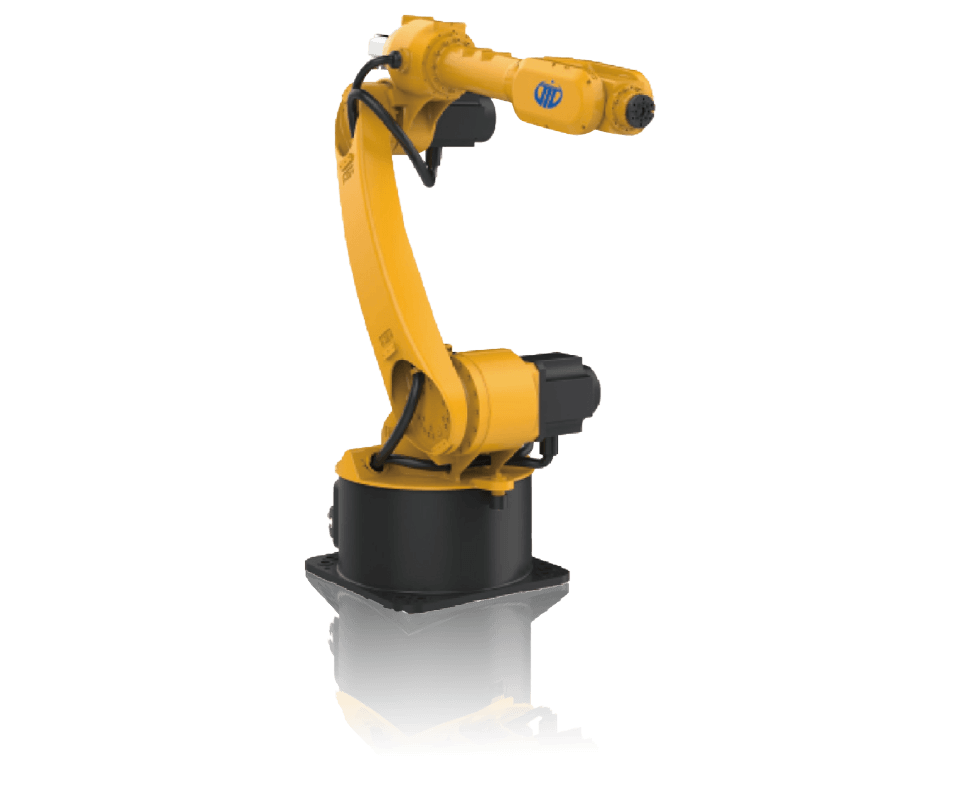

LTJ20-A Industrial robot
Main Specification
| Model | LTJ20-A | |
| Axes | 6 | |
| Max. Payload | 20KG | |
| Protection rating | IP 54 | |
| Manipulator | Weight | 260KG |
| Reach | 1702mm | |
| Positioning accuracy | Position repeatability | ±0.03mm |
| Working range | * Axis 1 rotation | -170°/+170° |
| Axis 2 arm | -95°/+155° | |
| Axis 3 arm | -95°/+170° | |
| Axis 4 wrist | -185°/+185° | |
| Axis 5 bemd | -135°/+135° | |
| Axis 6 turn | -400°/+400° | |
| Rotation rate | * Axis 1 rotation | 175°/s |
| Axis 2 arm | 175°/s | |
| Axis 3 arm | 175°/s | |
| Axis 4 wrist | 355°/s | |
| Axis 5 bemd | 355°/s | |
| Axis 6 turn | 600°/s | |
| Controllers | InCube 12 | |
* If the mechanical limit is removed, the working range van reach -180°/+180°
※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.
Flange drawing
Base installation drawing
