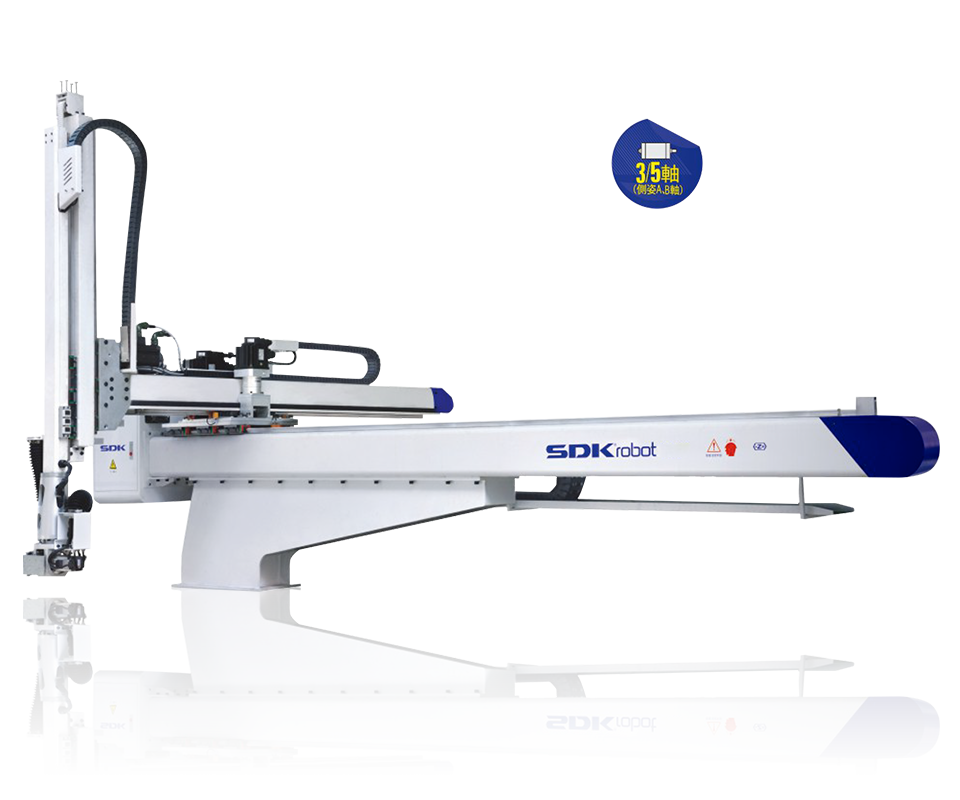

ET series-The large open type full servo manipulator
Main explanation
ET-series large tau open type full servo manipulator series manipulator series is mainly suitable for 1500-4000T horizontal injection molding machine finished out, were double sectional arm, X､Y､Z three axis AC servo motor drive, collocation Japan THK low noise rail, quiet and smooth, with standard equipment.
Customized services: according to customer needs, the side of the group to increase the servo A axis, B axis or one of the axes, flexible multi degree of freedom movement, the realization of complex extraction methods and the optimal path to take out.

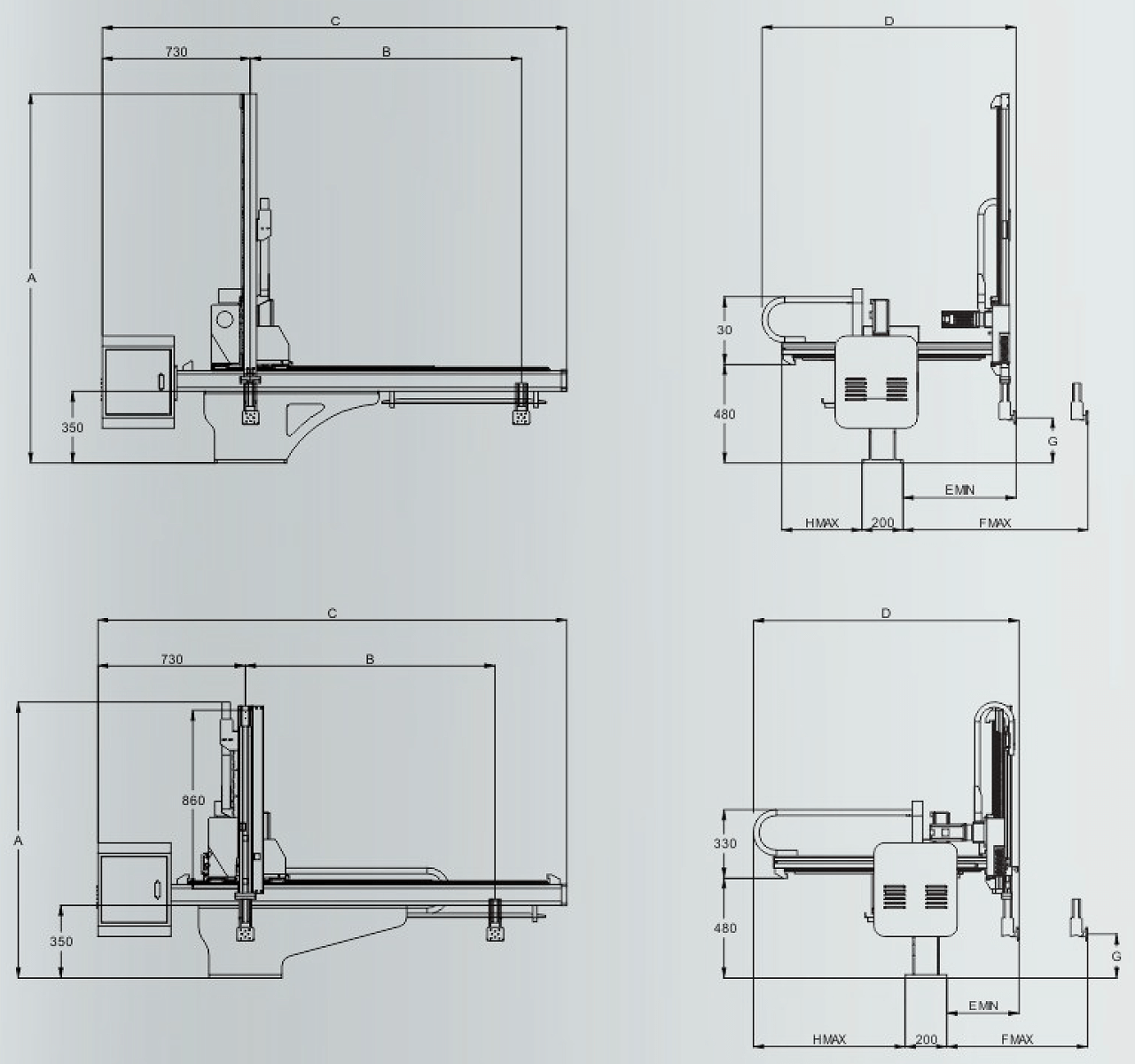

Size and chart650A~1000A
Main Specification650A~1000A
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) |
Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | ||||||||||
| ETII-650A+S3 | 50~180 | 650 | 450 | 1100 | 90˚ | 3 | 0.8 | 3.1 | Full AC Servro Motor Drive | 5~7 | 6 | Single-phase AC220V±10V 50/60HZ |
2.2 | 190 |
| ETI-850A+S5 | 150~280 | 850 | 550 | 1300 | 0.9 | 3.5 | 210 | |||||||
| ETII-850A+S3 | 150~280 | 850 | 1300 | 0.9 | 3.3 | 3.0 | 220 | |||||||
| ETI-1000A+S3 | 200~350 | 1000 | 1500 | 1.0 | 3.9 | 240 | ||||||||
| ETII-1000A+S3 | 200~350 | 1500 | 1.0 | 3.5 | 240 | |||||||||
| Model | A | B | C | D | E | F | G | H |
| ETII-650A+S3 | 1320 | 1100 | 2065 | 1200 | 220 | 670 | 140 | 810 |
| ETI-850A+S5 | 1800 | 1300 | 2265 | 1300 | 770 | |||
| ETII-850A+S3 | 1400 | |||||||
| ETI-1000A+S3 | 1950 | 1500 | 2465 | |||||
| ETII-1000A+S3 | 1470 |
For process improvement, model update without notice!

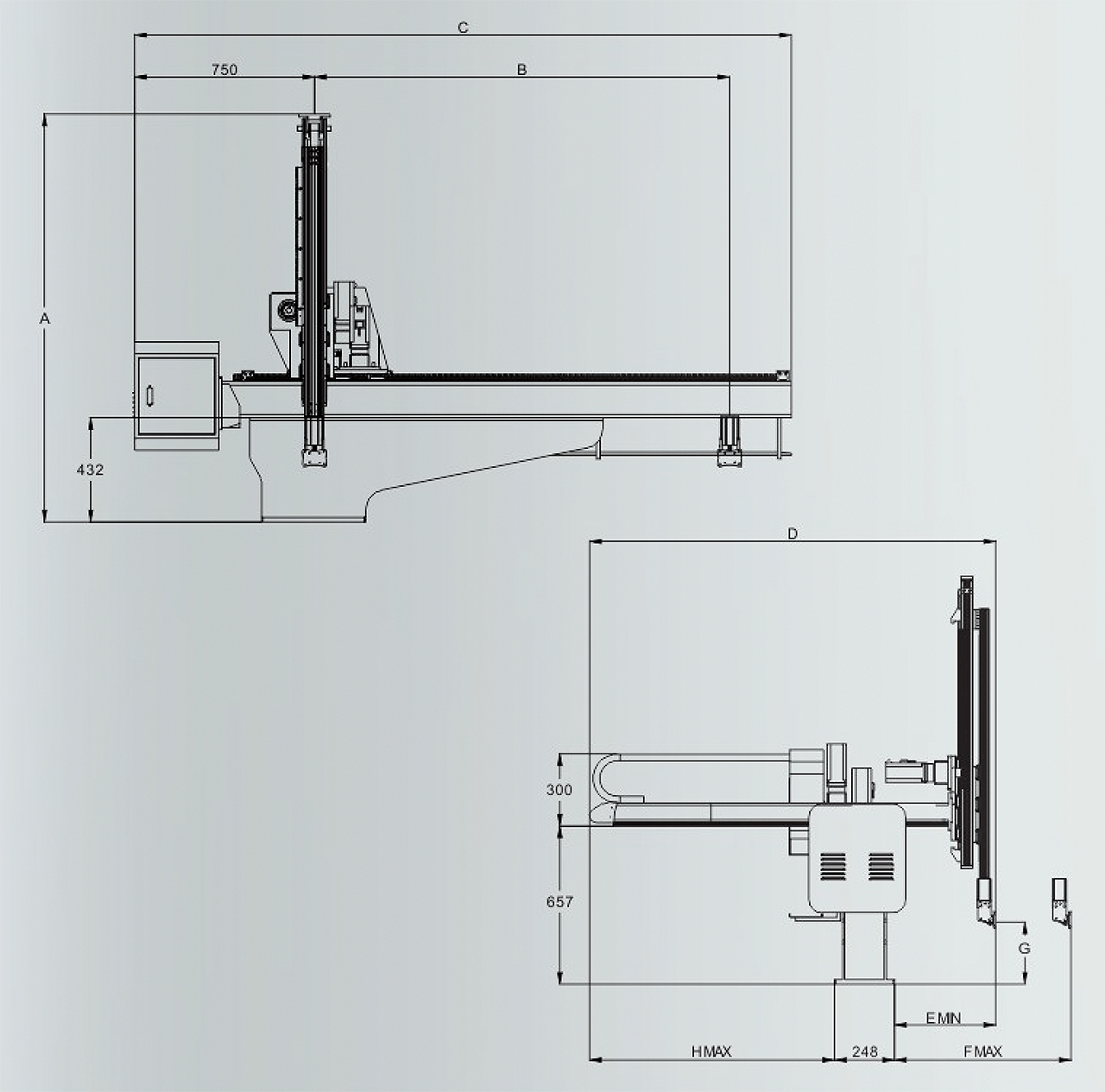

Size and chart1100B~1300B
Main Specification1100B~1300B
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) |
Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | ||||||||||
| ETII-1100B+S3 | 250~550 | 1100 | 920 | 1700 | 90˚ | 6 | 2.5 | 10 | X､Y､Z-AC Servro Motor | 5~7 | 7 | Single-phase AC220V±10V 50/60HZ |
2.2 | 350 |
| ETII-1100B+S5 | 3.0 | |||||||||||||
| ETII-1300B+S3 | 350~700 | 1300 | 1120 | 1900 | 6 | 2.8 | 12 | 2.2 | 400 | |||||
| ETII-1300B+S5 | 3.0 | |||||||||||||
| Model | A | B | C | D | E | F | G | H |
| ETII-1100B+S3 | 1760 | 1700 | 2740 | 1685 | 280 | 1200 | 230 | 1150 |
| ETII-1100B+S5 | 300 | |||||||
| ETII-1300B+S3 | 1880 | 1900 | 2940 | 1865 | 1400 | 230 | 1330 | |
| ETII-1300B+S5 | 300 |
For process improvement, model update without notice!

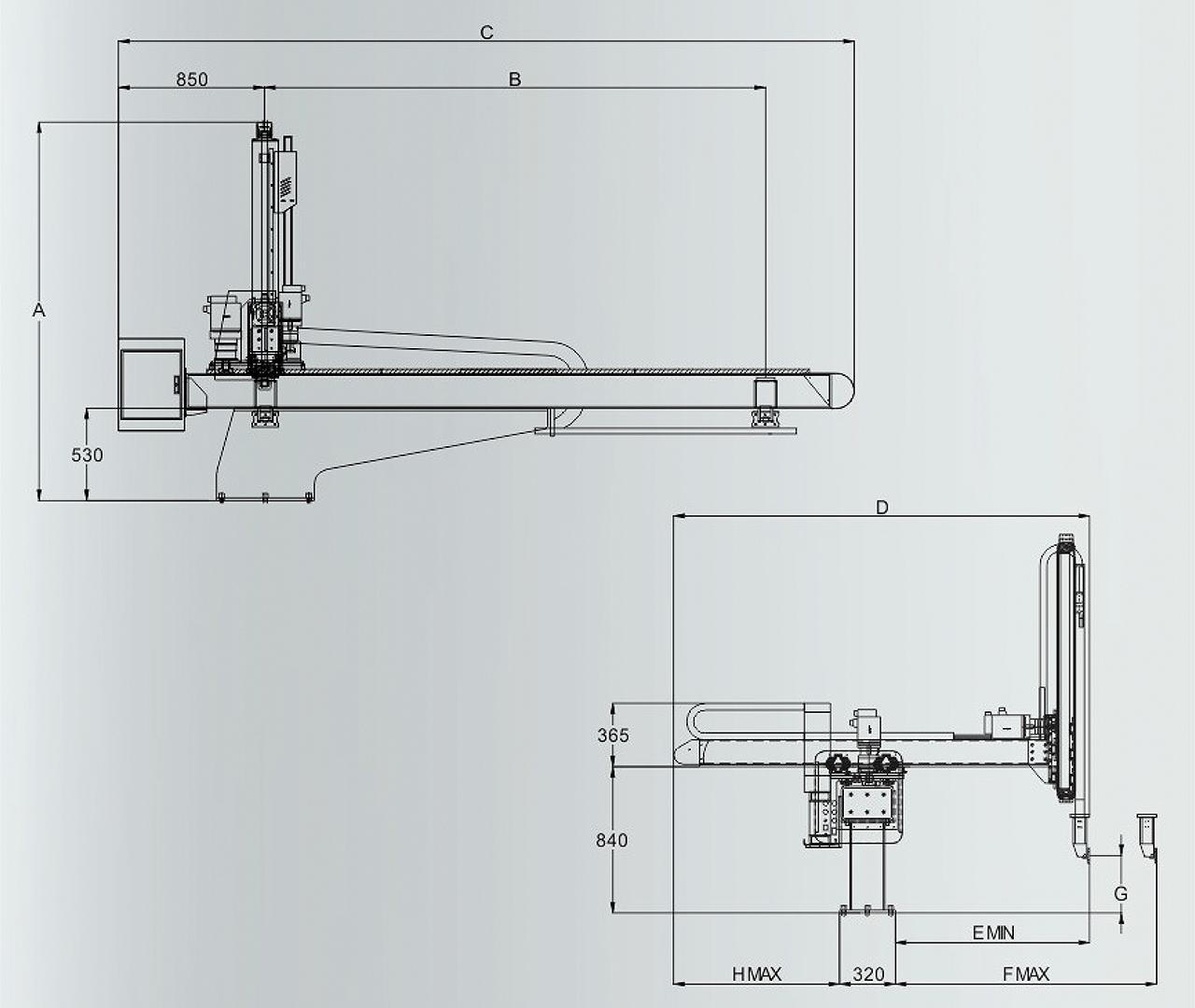

Size and chart1700C~3000C
Main Specification1700C~3000C
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including ceiling fixtures) | Time (sec) |
Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | |||||||
| ETII-1700C+S3 | 800~1250 | 1700 | 1400 | 2600 | 90˚ | 30 | 3 | 15 | Single-phase AC220V±10V 50/60HZ |
5.0 | 850 |
| ETII-1700C+S5 | |||||||||||
| ETII-1900C+S3 | 900~1400 | 1900 | 1800 | 2900 | 3.5 | 17 | 950 | ||||
| ETII-1900C+S5 | |||||||||||
| ETII-2200C+S3 | 1200~1600 | 2200 | 3400 | 45 | 3.5 | 19 | 1100 | ||||
| ETII-2200C+S5 | |||||||||||
| ETII-2500C+S3 | 1500~2200 | 2500 | 2000 | 3700 | 90˚ | 45 | 4 | 21 | Single-phase AC220V±10V 50/60HZ |
5.0 | 1250 |
| ETII-2500C+S5 | |||||||||||
| ETII-3000C+S3 | 1800~3600 | 3000 | 2250 | 4400 | 5 | 23 | 1550 | ||||
| ETII-3000C+S5 | |||||||||||
| Model | A | B | C | D | E | F | G | H |
| ETII-1700C+S3 | 2300 | 2600 | 3950 | 2400 | 350 | 1750 | 300 | 1800 |
| ETII-1700C+S5 | ||||||||
| ETII-1900C+S3 | 2420 | 2900 | 4250 | 2800 | 2150 | 2200 | ||
| ETII-1900C+S5 | ||||||||
| ETII-2200C+S3 | 2600 | 3400 | 4750 | |||||
| ETII-2200C+S5 | ||||||||
| ETII-2500C+S3 | 2780 | 3700 | 5050 | 3000 | 350 | 2350 | 300 | 2400 |
| ETII-2500C+S5 | ||||||||
| ETII-3000C+S3 | 3080 | 4400 | 5750 | 3250 | 2600 | 2650 | ||
| ETII-3000C+S5 | ||||||||
For process improvement, model update without notice!

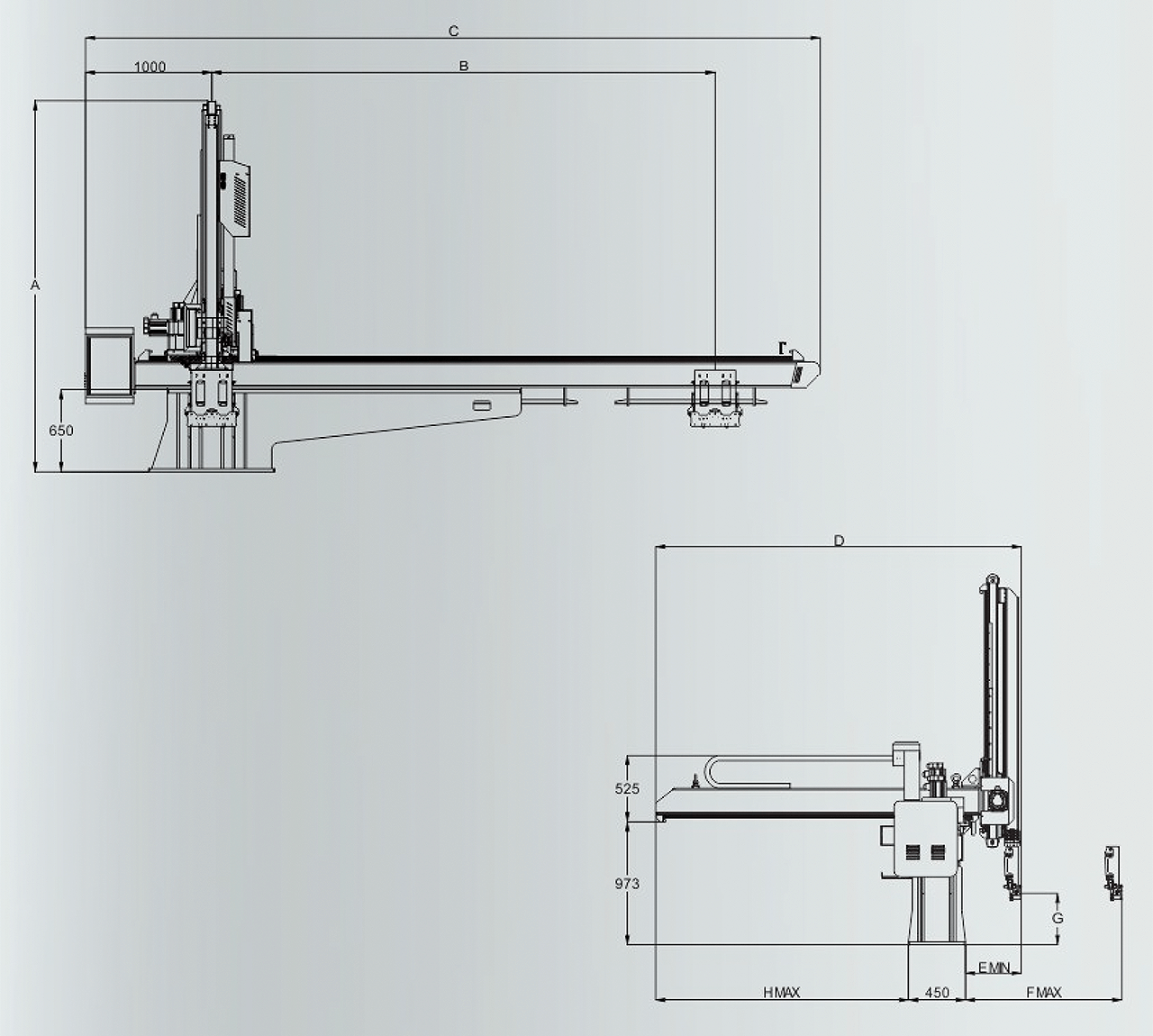

Size and chart1900D~3500D
Main Specification1900D~3500D
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including ceiling fixtures) | Time (sec) |
Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Cross traveling | Take out | Empty loop | |||||||
| ETII-1900D+S3 | 900~1400 | 1900 | 1800 | 2900 | 90˚ | 60 | 4 | 20 | Single-phase AC220V±10V 50/60HZ |
7.0 | 1500 |
| ETII-1900D+S5 | 1500 | ||||||||||
| ETII-2200D+S3 | 1200~1600 | 2200 | 3400 | 4.2 | 22 | 1600 | |||||
| ETII-2200D+S5 | 1600 | ||||||||||
| ETII-2500D+S3 | 1500~2200 | 2500 | 2250 | 3700 | 4.6 | 24 | 1700 | ||||
| ETII-2500D+S5 | 1700 | ||||||||||
| ETII-3000D+S3 | 1800~4000 | 3000 | 2250 | 4200 | 90˚ | 60 | 4.6 | 24 | Single-phase AC220V±10V 50/60HZ |
7.0 | 1850 |
| ETII-3000D+S5 | 1850 | ||||||||||
| ETII-3500D+S3 | 2000~4500 | 3500 | 2400 | 4400 | 5 | 26 | 1950 | ||||
| ETII-3500D+S5 | 1950 | ||||||||||
| Model | A | B | C | D | E | F | G | H |
| ETII-1900D+S3 | 2710 | 2900 | 4650 | 2805 | 450 | 2250 | 400 | 2350 |
| ETII-1900D+S5 | ||||||||
| ETII-2200D+S3 | 2770 | 3400 | 5350 | |||||
| ETII-2200D+S5 | ||||||||
| ETII-2500D+S3 | 2950 | 3700 | 5850 | 3285 | 2700 | 2800 | ||
| ETII-2500D+S5 | ||||||||
| ETII-3000D+S3 | 3200 | 4200 | 5850 | 3285 | 450 | 2700 | 400 | 2800 |
| ETII-3000D+S5 | ||||||||
| ETII-3500D+S3 | 3500 | 4400 | 6050 | 3440 | 2850 | 2950 | ||
| ETII-3500D+S5 | ||||||||
For process improvement, model update without notice!
