A series-single axis servo shaft walking robot
Main explanation

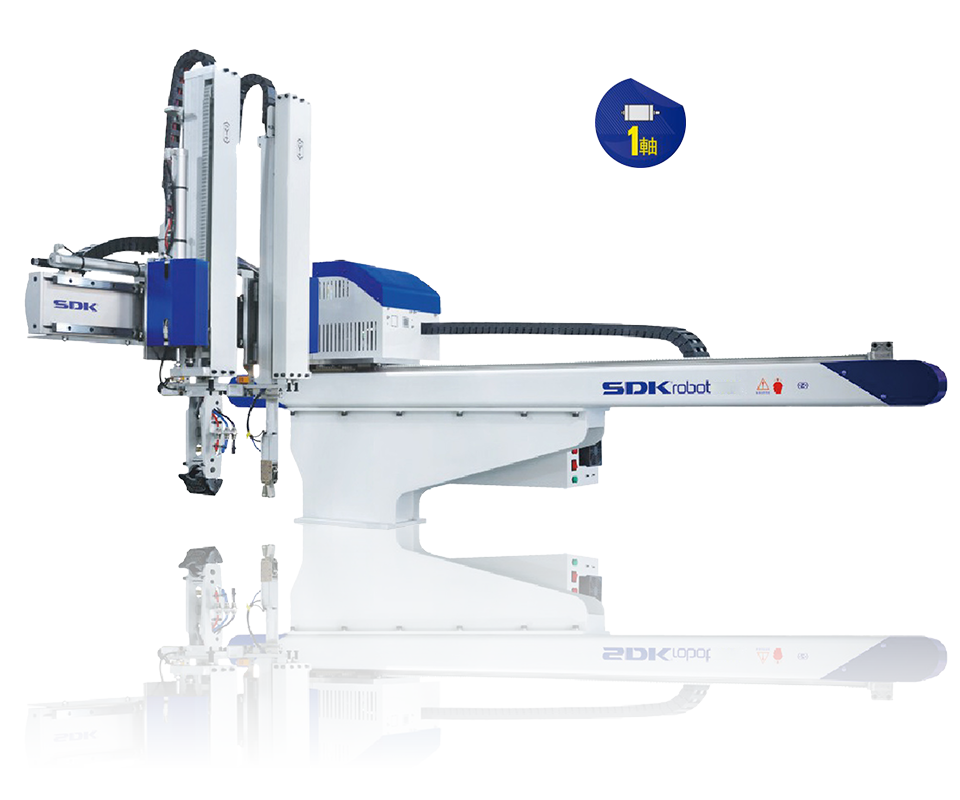

A-series side manipulator series is mainly used in the 100-700T horizontal injection molding machine finished out, using double section type arm, can increase the jib for three die head out, with AC servo motor drive, drawing, drive under pressure, the stroke adjustment and position adjustment mode with manual adjustment (standard) and electric adjustment (optional) two, equipped with standard suction and holding fixture.

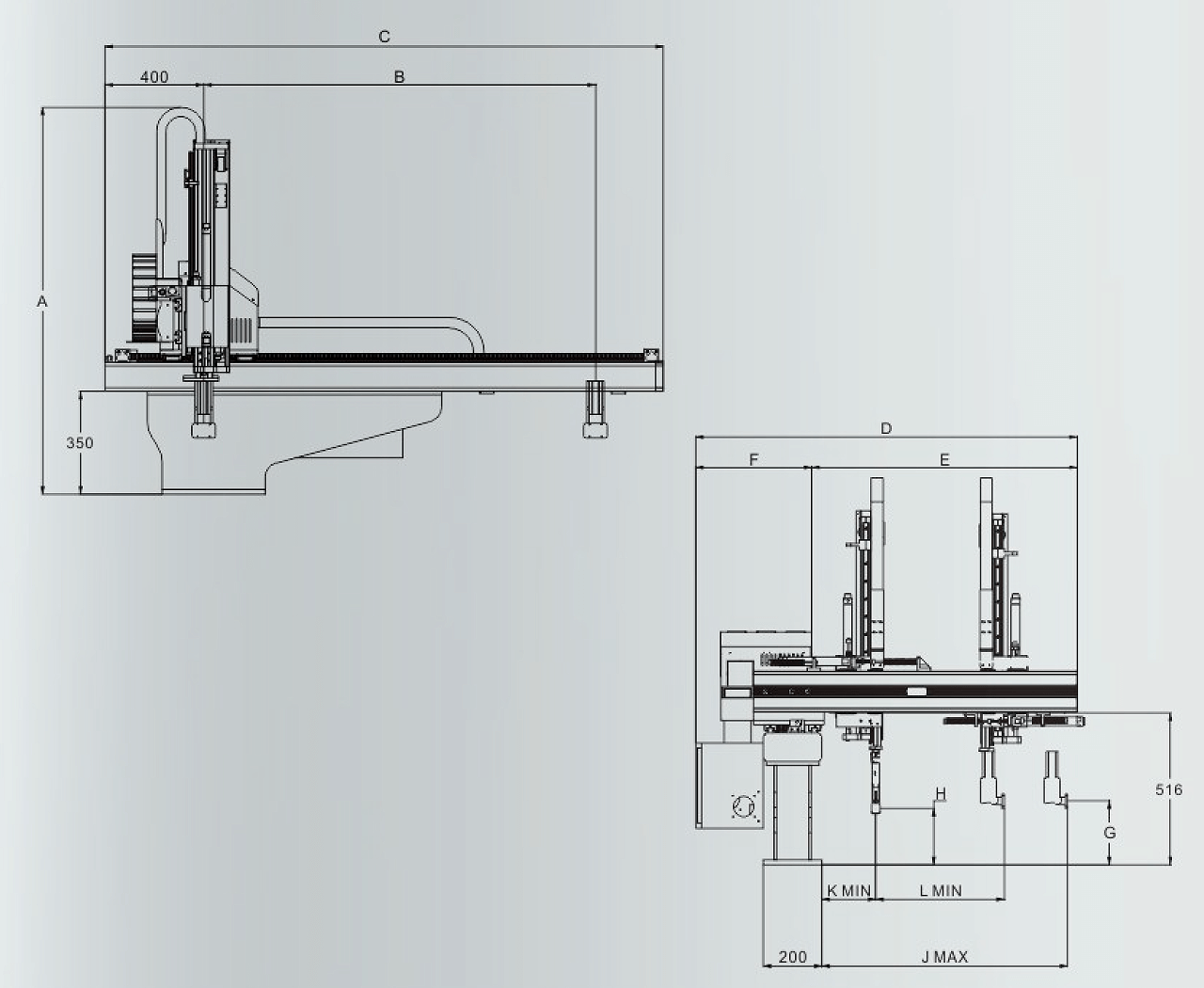

Size and chart850~1200
Main Specification850~1200
| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) |
Max load (including ceiling fixtures) | Time (sec) | Driven way | Working pressure (kgf/cm) | Air Consumption (nl/cycle) | Power supply | Power consumption (kva) | NW (kg) | |||
| Up and down | Pull up | Spin out | Take out | Empty loop | ||||||||||
| ASII-850+S | 100~280 | 850 | Main arm:170 Sub-arm:120 |
1350 | 90° | 3 | 1.9 | 8 | Z-AC Servo motor Z-AC Servo Motor X､Y-Pressure |
5~7 | 21 | Single-phase AC220V 50/60HZ |
0.9 | 200 |
| ADII-850+S | ||||||||||||||
| ASII-1000+S | 250~450 | 1100 | Main arm:300 Sub-arm:200 |
1700 | 5 | 2.5 | 10 | 35 | 1.1 | 315 | ||||
| ADII-1000+S | ||||||||||||||
| ASII-1200+S | 350~700 | 1300 | 1750 | 7 | 2.8 | 12 | 40 | 360 | ||||||
| ADII-1200+S | ||||||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L |
| ASII-850+S | 1380 | 1350 | 1900 | 1300 | 900 | 400 | 230 | 210 | 700 | 160 | 100 |
| ADII-850+S | |||||||||||
| ASII-1000+S | 1500 | 1700 | 2360 | 1570 | 1170 | 200 | 200 | 1000 | 400 | 400 | |
| ADII-1000+S | |||||||||||
| ASII-1200+S | 1650 | 1750 | 2600 | 1660 | 1260 | 400 | 400 | 1100 | |||
| ADII-1200+S |
For process improvement, model update without notice!
