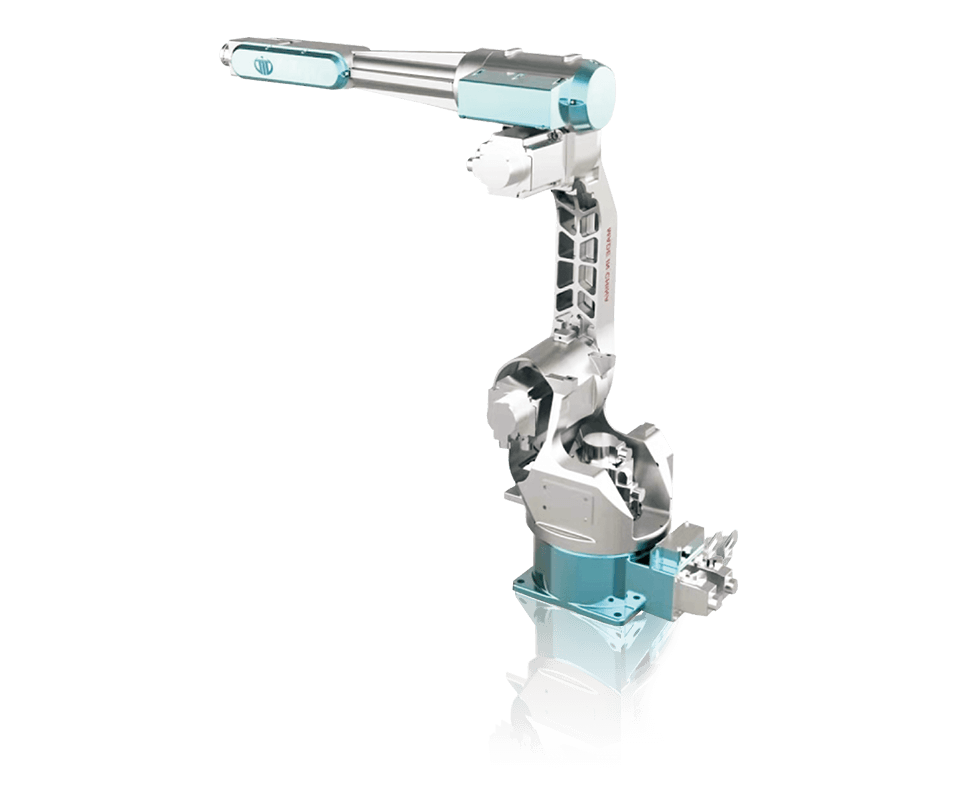

LTJ10-B Industrial robot
Main Specification
| Model | LTJ10-B | |
| Rated payload | 10KG | |
| Reach radius | 1400/1600mm | |
| Constructure | Connect | |
| Axes | 6 | |
| Repeatability | ±0.05mm | |
| Max. Working range | Axis 1 rotation | ±170° |
| Axis 2 arm | ±100°~-160° | |
| Axis 3 arm | ±90°~-85° | |
| Axis 4 wrist | ±200° | |
| Axis 5 bemd | ±120° | |
| Axis 6 turn | ±360° | |
| Max .Rotation rate | Axis 1 rotation | 150°/sec |
| Axis 2 arm | 149°/sec | |
| Axis 3 arm | 150°/sec | |
| Axis 4 wrist | 294°/sec | |
| Axis 5 bemd | 370°/sec | |
| Axis 6 turn | 600˚/sec | |
| Weight | ≈168KG | |
| Installation | Ground Mounting, Bracket Mounting, Upside Down Mounting | |
| Ambient Temperature | -20°C~8 0°C | |
| Suitable model | 200T-480T | |
※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.

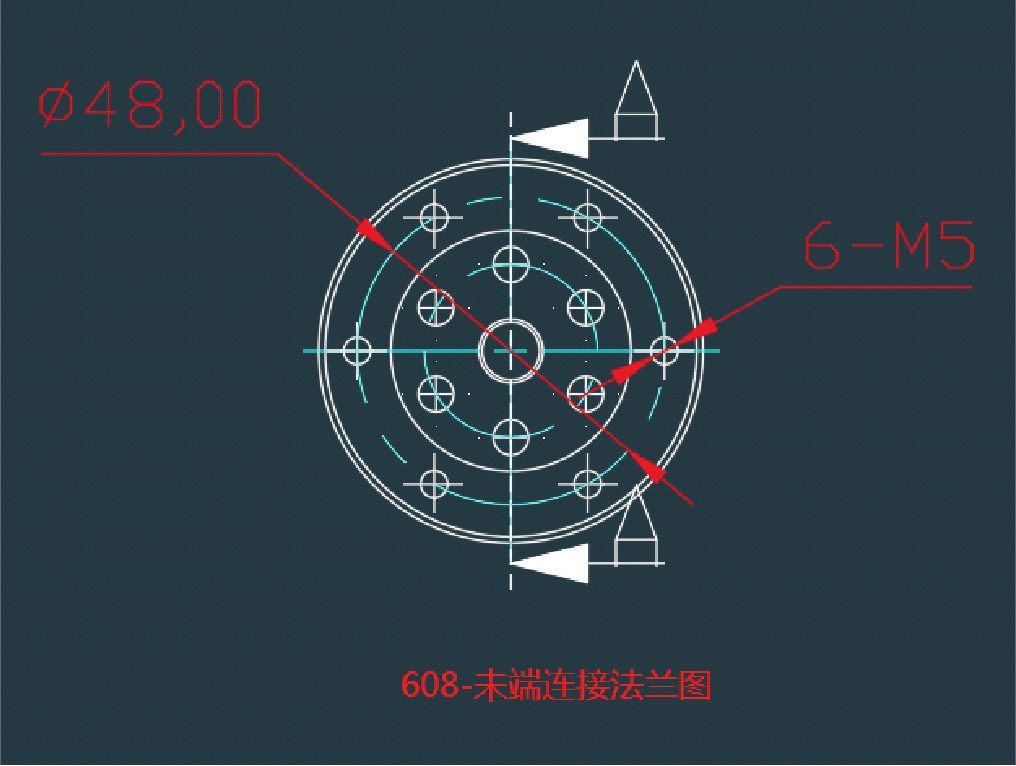

Flange drawing

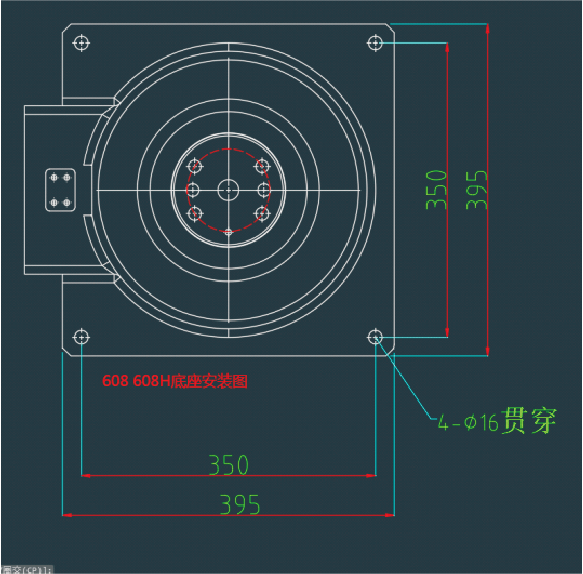

Base installation drawing
