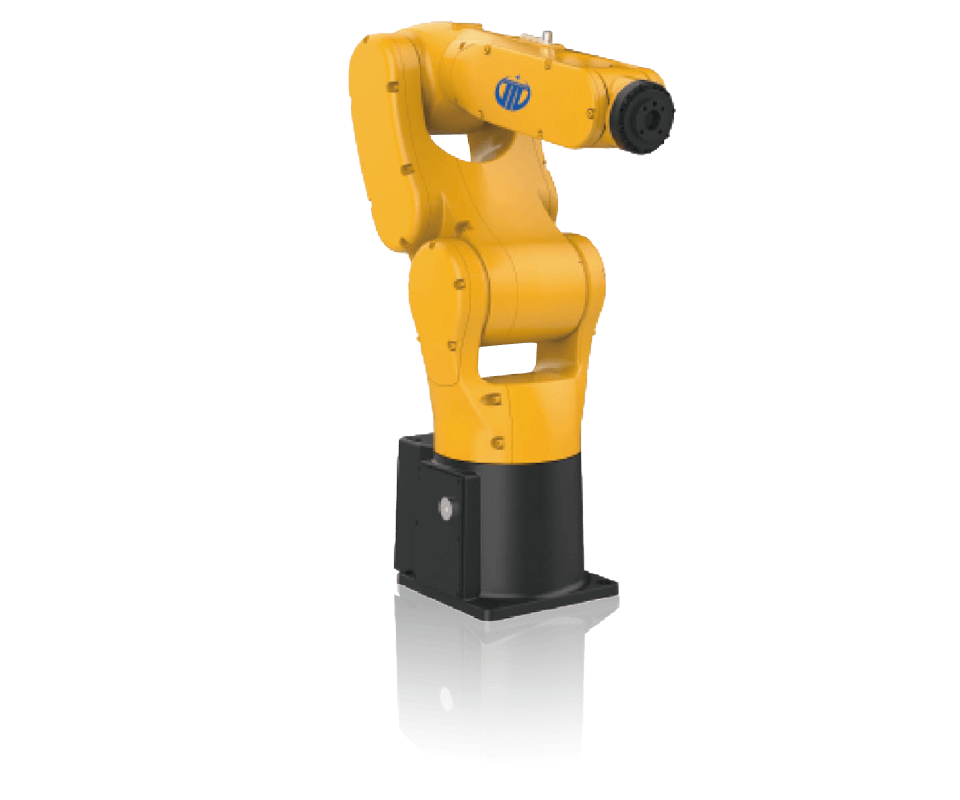

LTJ6-A Industrial robot
Main Specification
| Model | LTJ6-A | |
| Axes | 6 | |
| Max. Payload | 6KG | |
| Protection rating | IP 65 | |
| Manipulator | Weight | 47KG |
| Reach | 920mm | |
| Positioning accuracy | Position repeatability | ±0.02mm |
| Working range | * Axis 1 rotation | -170°/+170° |
| Axis 2 arm | -100°/+136° | |
| Axis 3 arm | -120°/+156° | |
| Axis 4 wrist | -200°/+200° | |
| Axis 5 bemd | -135°/+135° | |
| Axis 6 turn | -360°/+360° | |
| Rotation rate | * Axis 1 rotation | 380°/s |
| Axis 2 arm | 325°/s | |
| Axis 3 arm | 390°/s | |
| Axis 4 wrist | 480°/s | |
| Axis 5 bemd | 550°/s | |
| Axis 6 turn | 800°/s | |
| Controllers | InCube 10/20 | |
* If the mechanical limit is removed, the working range van reach -180°/+180°
※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.
Flange drawing
Base installation drawing
